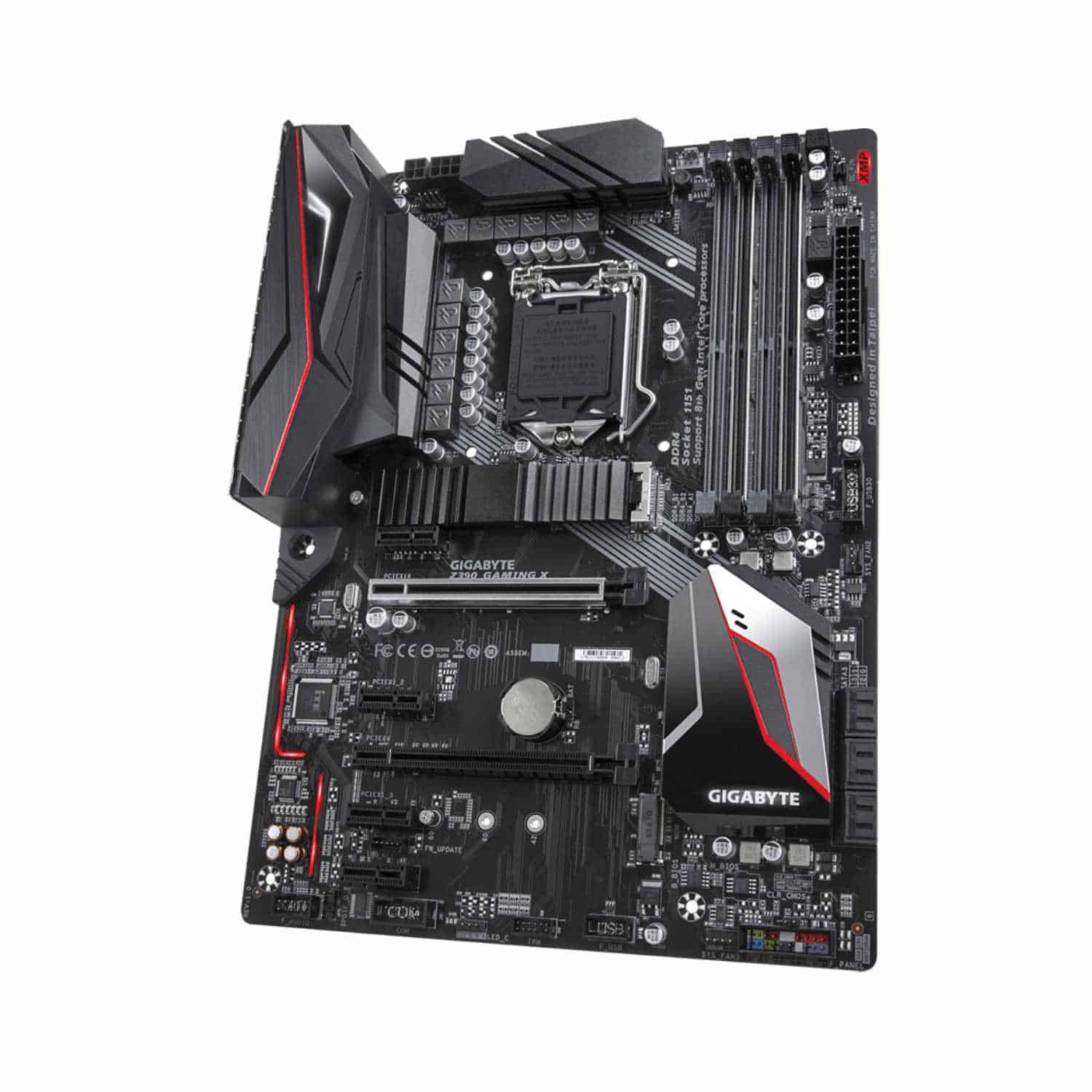

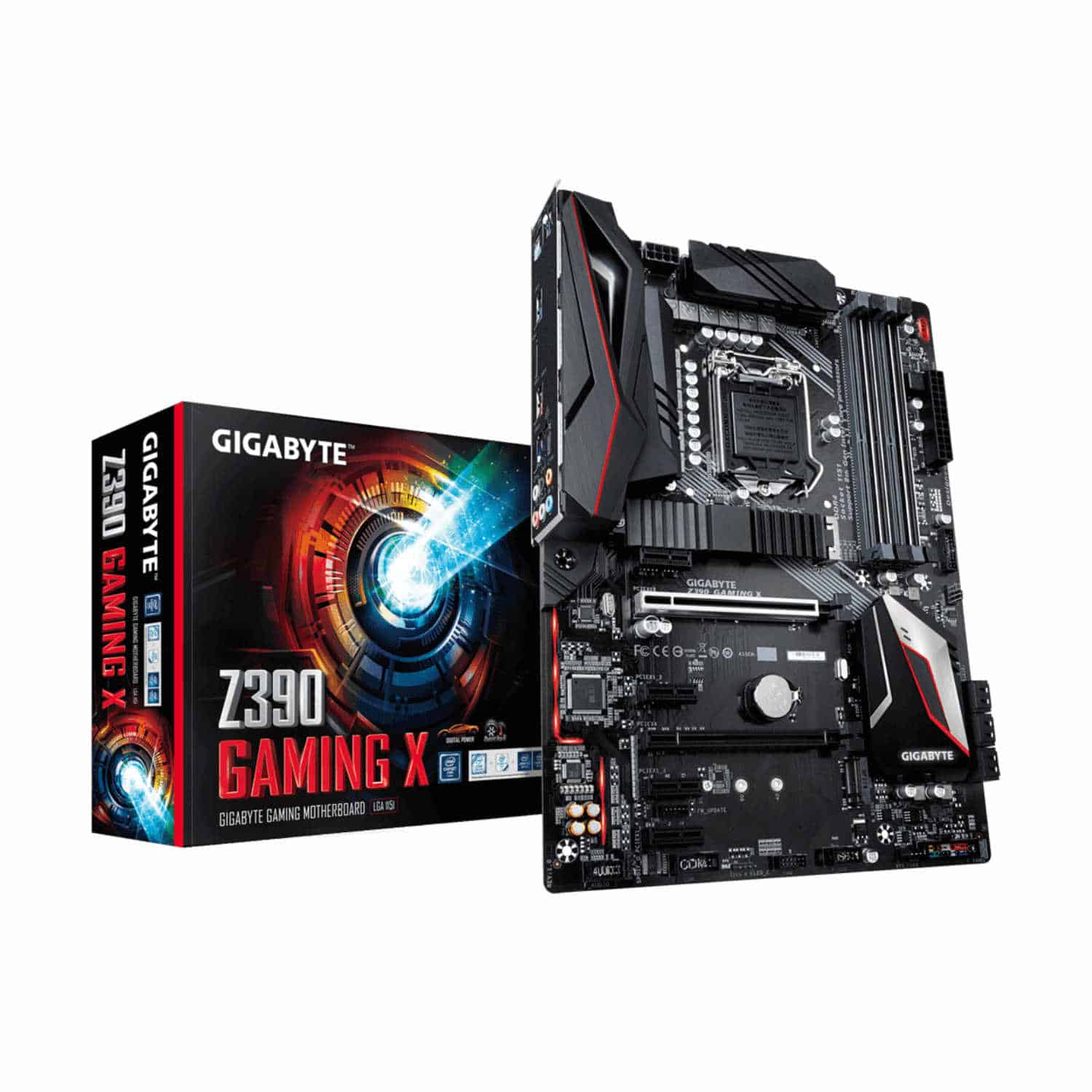

PLACA MADRE GIGABYTE Z390 GAMING X LGA 1151-V2 (8VA Y 9NA GEN) Z390 HDMI SATA 6G

La nueva placa base Gigabyte, Z390 Gaming X, que soporta procesadores de 8ª y 9ª generación gracias a su socket Intel 1151 y su chipset Z390
- Especificaciones: CPU Support for Intel 9000 Processors and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU (Please refer “CPU Support List” for more information
-) Chipset Intel® Z390 Express Chipset Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 4000(O
-C
-) / 3866(O
-C
-) / 3800(O
-C
-) / 3733(O
-C
-) / 3666(O
-C
-) / 3600(O
-C
-) / 3466(O
-C
-) / 3400(O
-C
-) / 3333(O
-C
-) / 3300(O
-C
-) / 3200(O
-C
-) / 3000(O
-C
-) / 2800(O
-C
-) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information
-) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1
-4 version and HDCP 2
-2
- Maximum shared memory of 1 GB Audio Realtek® ALC892 codec High Definition Audio 2/4/5
-1/7
-1-channel Support for S/PDIF Out LAN Intel® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot
- 1 x PCI Express x16 slot, running at x4 (PCIEX4) 4 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3
-0 standard
-) Storage Interface Chipset: 1 x M
-2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M
-2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support, prepared for Intel® Hybrid SSD) (M2M) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to “1-7 Internal Connectors,” for the installation notices for the M
-2 and SATA connectors
- Intel® Optane™ Memory Ready Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies USB Chipset: 1 x USB 3
-1 Gen 2 Type-A port (red) on the back panel 7 x USB 3
-1 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2
-0/1
-1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M
-2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3
-1 Gen 1 header 1 x USB 2
-0/1
-1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2

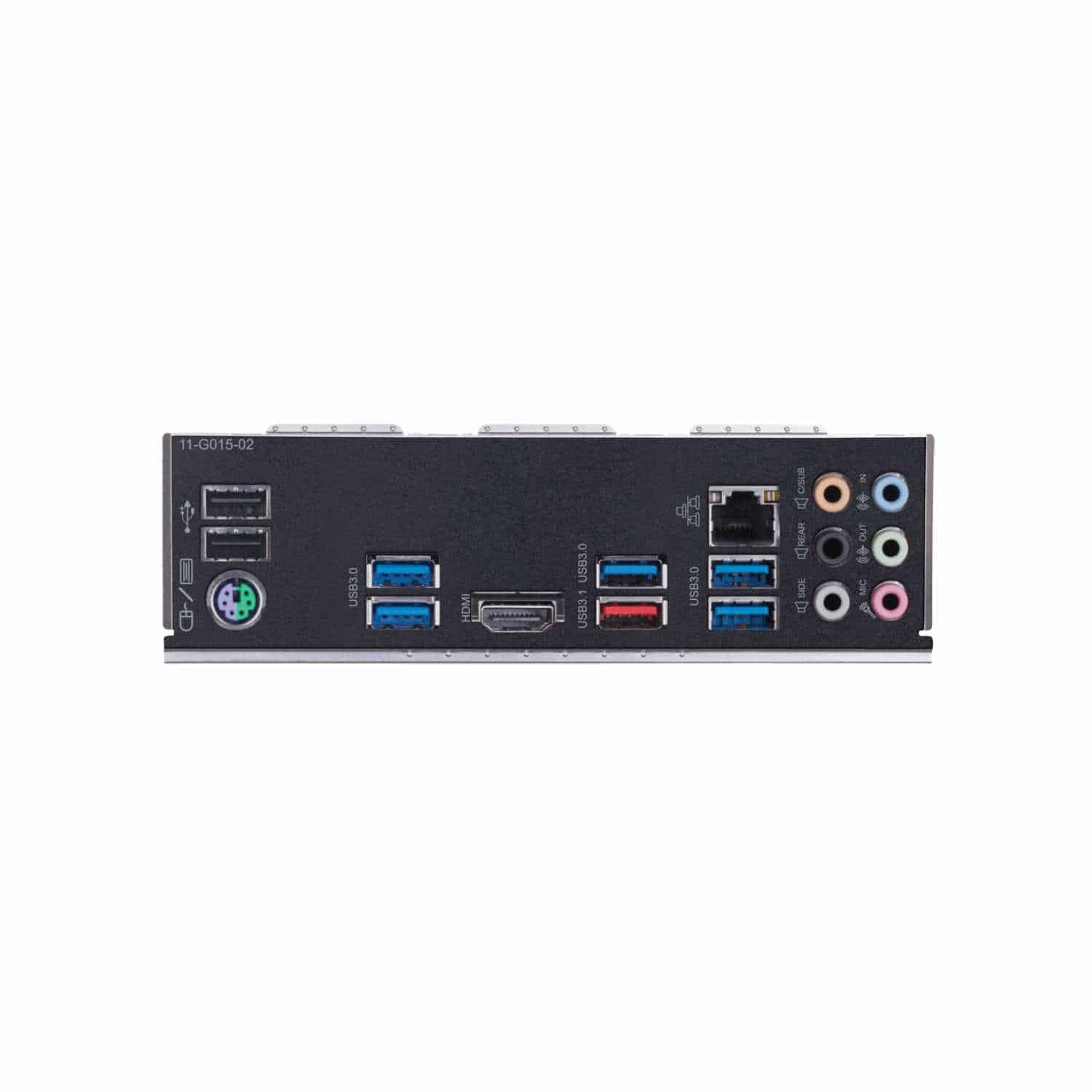

-0_S module only) 1 x Thunderbolt™ add-in card connector 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port 1 x USB 3
-1 Gen 2 Type-A port (red) 5 x USB 3
-1 Gen 1 ports 2 x USB 2
-0/1
-1 ports 1 x RJ-45 port 6 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install
- BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1
-0a, DMI 2
-7, WfM 2
-0, SM BIOS 2
-7, ACPI 5
-0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model
- Supported functions of each application may also vary depending on motherboard specifications
- 3D OSD @BIOS Ambient LED AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install Bundle Software Norton® Internet Security (OEM version) cFosSpeed Operating System Support for Windows 10 64-bit Form Factor ATX Form Factor; 30
-5cm x 22
-5cm Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors? website or 3rd party website
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP
- If drivers are available from the vendors, we will update them on the GIGABYTE website
-
